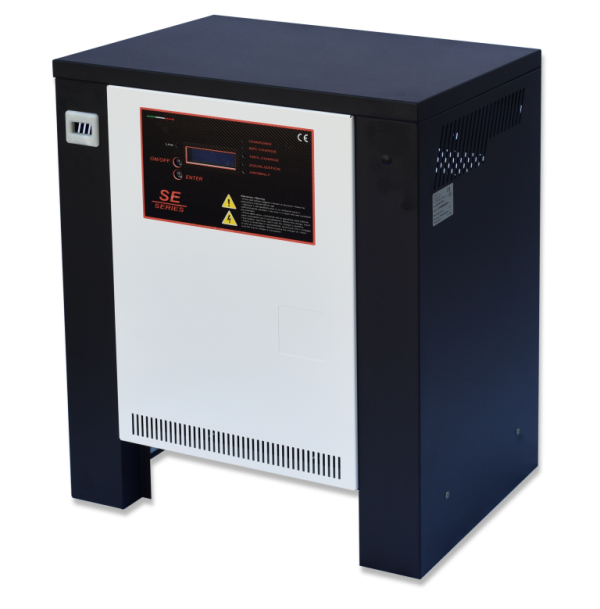

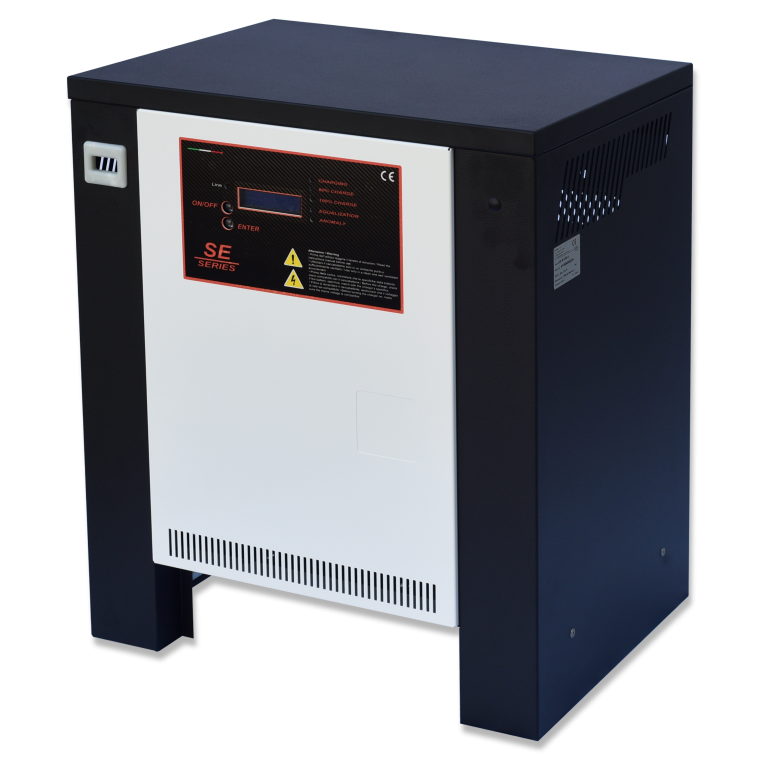

24 volt, 100 amp, Single Phase, 240v Battery Charger (Suitable for 430ah – 620ah batteries)

£348.00 + VAT

Description

Suitable for use with all brands and makes of WET/Flooded Forklift Batteries

High Frequency Output – 48 volts 60 amps (60 amps DC High Frequency is approximately equivalent to a 100 amps DC conventional charger)

Input – 1ph (240vac) 16a minimum

Suitable for use with batteries of a capacity of 400Ah – 640Ah* (8hr-15hrs)

* Battery capacity range is given as a guide and is based on a battery in good condition. This charger will fully charge batteries of a larger capacity if put on charge before being fully discharged.

WALL MOUNTED OR ON-BOARD

The PBQE Series is ideal to be installed either on your wall as normal or onboard electrical vehicles thanks to its reduced dimensions.

PROTECTION DEGREE

The PBQE Series isIP65 rated

This degree of protection allows the charger to be totally protected against dust, sand and in general any solid physical body of small dimensions, able to withstand low-pressure water jets from all directions. Please note that this product should not be mounted directly in the open air, unprotected from the elements

Ideal to also be used in outside environments under a protective shelter.

BUMP RESISTANT

The casing, which acts as a heat sink, it’s resistant to bumps.

The cooling fan is protected by the dedicated grid that deters it from being damaged over time.

Features

• Connections
• –  Single Phase 230Vac +-10% / 50-60Hz
• IP65 protection
• Power Factor: ≥ 0,99
• Efficiency: ≥ 94%
• Noise: ≤45 dB
• Long lasting cooling  fan
• PCB completely covered by special resin
• Ideal for many different industrial environments (high or low temperatures, lot of humidity, altitude,…)
• Possibility to install additional accessories
• High frequency resonant technology

Safety

• Protection against overheating
• Protection against reverse polarity
• Protection against short circuit
• Self-diagnostic in case of anomaly
• Automatic interruption of the charging cycle when charge is completed
• Active PFC
• Soft-start when charge begins

DIMENSIONS

305mm x 217mm x 126mm (+/-2mm)

View Drawing 48V60A DRAWING
